Features of Braid SS－20
Thunderon® Braid SS－20 is made from an organic conductive yarn which copper sulfide is chemically bonded to. This Braid is a static removing cord that eliminates static electricity safely by corona discharge.
Main Uses of Braid SS－20

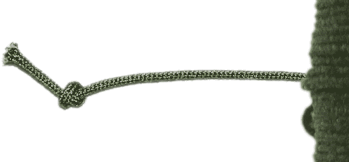

サンダーロン SS-20組紐 写真
  • In static-removing products for electronic equipment.
  • As an anti-static measure at resin molding plants or film factories.
  • As grounding for electronic equipment or home electronics.
    (grounded or ungrounded)


【Size】
2φmm× 200m length

※【 Notes on Use 】
注意
  • Thunderon® eliminates static electricity instantaneously by corona discharge, but if static electricity is being generated repeatedly, its ability to eliminate the static decreases, so please be sure to use grounding.
  • The cord is made from a conductive yarn (a semiconductor), but it is not to be used as a conducting wire. Do not allow it to come into contact with an electric power source.
  • The cord will heat up if irradiated with high-frequency or microwave radiation. Please avoid this kind of irradiation
  • Use should be avoided if eczema, rashes or other skin abnormalities occur
  • If soiled, wash the brush with a neutral detergent. Do not use bleach or oxidizing agents.
